Software
Overview

the base station software is the master mind of the enter system as it manages various operations such as :

• Location tracing

• Plane control

• Video recording

• Image extraction

Each of the above operations is handled efficiently and easily

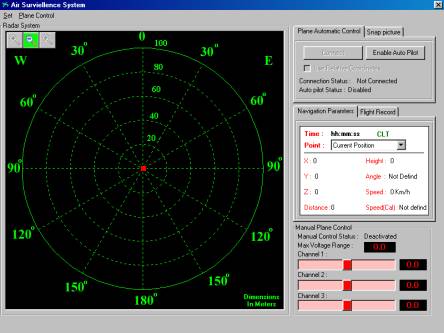

The system front page

• the software front page contains various sections

1.  Radar system : on which the current plane location with respect to a predescribed reference frame is viewed

2. plane automatic control : which serves double purposes

• connecting the user with the plane allowing the plane location to be viewed either as a rough location or in relative to the reference frame

• enabling the auto pilot

3. snap picture : from which the fixed camera are controlled and image processed later
4. navigation parameters : providing the user with an update of the current navigation parameters including : coordinates , height , speed, angle and the distance, in addition to the current reference frame location
5. manual plane control : from which the plane could be manually controlled using a preselected keyboard buttons( a couple for each channel )
